Church of San Giovanni Battista in Mogno 1986-96
Mario Botta


Detail

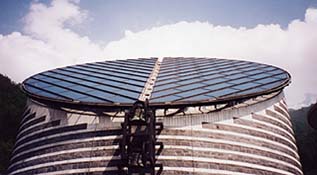

Below is a detail image of the sloped roof structure, constructed with metal frame and thin glass sheets. The roof is sloped 45 degrees west, mirroring the mountains and the valley.
Move mouse over image to view the roll-over, click to enlarge

The roof structure is a significant part of the church. The mullions creates a diagonal grid on the roof plain. The thin mullions sits on a layer of metal tubes which also runs diagonal across the plain. The metal tubes are supported along the edge of the masonry body and the buttress that connects the highest point to the lowest of the top enclosure. The thin metal frame roof structure was attended to harmonize, meeting a balance towards the mass body structure. The pattern on the roof plain reveals a sense of delicacy and rigidity, representing sturdiness of a light and thin structure, reflecting how the human spirit is small yet strong against the power of nature.
